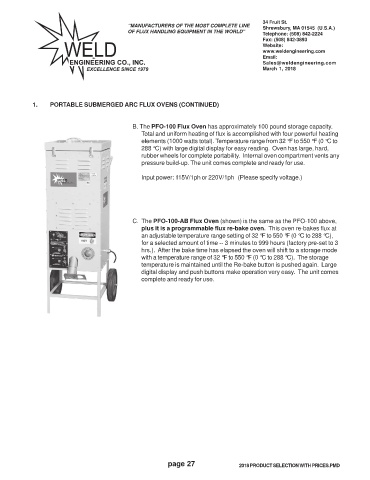

1. PORTABLE SUBMERGED ARC FLUX OVENS (CONTINUED)

B. The PFO-100 Flux Oven has approximately 100 pound storage capacity.
Total and uniform heating of flux is accomplished with four powerful heating
elements (1000 watts total). Temperature range from 32 °F to 550 °F (0 °C to
288 °C) with large digital display for easy reading. Oven has large, hard,
rubber wheels for complete portability. Internal oven compartment vents any
pressure build-up. The unit comes complete and ready for use.

Input power: 115V/1ph or 220V/1ph (Please specify voltage.)

C. The PFO-100-AB Flux Oven (shown) is the same as the PFO-100 above,
plus it is a programmable flux re-bake oven. This oven re-bakes flux at
an adjustable temperature range setting of 32 °F to 550 °F (0 °C to 288 °C),
for a selected amount of time -- 3 minutes to 999 hours (factory pre-set to 3
hrs.). After the bake time has elapsed the oven will shift to a storage mode
with a temperature range of 32 °F to 550 °F (0 °C to 288 °C). The storage
temperature is maintained until the Re-bake button is pushed again. Large
digital display and push buttons make operation very easy. The unit comes
complete and ready for use.
