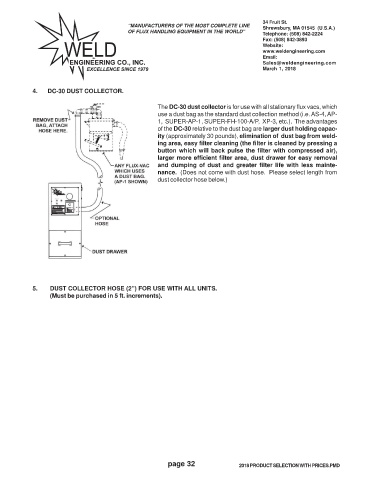

4. DC-30 DUST COLLECTOR.

The DC-30 dust collector is for use with all stationary flux vacs, which
use a dust bag as the standard dust collection method (i.e. AS-4, AP-
1, SUPER-AP-1, SUPER-FH-100-A/P, XP-3, etc.). The advantages
of the DC-30 relative to the dust bag are larger dust holding capac-
ity (approximately 30 pounds), elimination of dust bag from weld-
ing area, easy filter cleaning (the filter is cleaned by pressing a
button which will back pulse the filter with compressed air),
larger more efficient filter area, dust drawer for easy removal
and dumping of dust and greater filter life with less mainte-
nance. (Does not come with dust hose. Please select length from
dust collector hose below.)

5. DUST COLLECTOR HOSE (2”) FOR USE WITH ALL UNITS.
(Must be purchased in 5 ft. increments).
