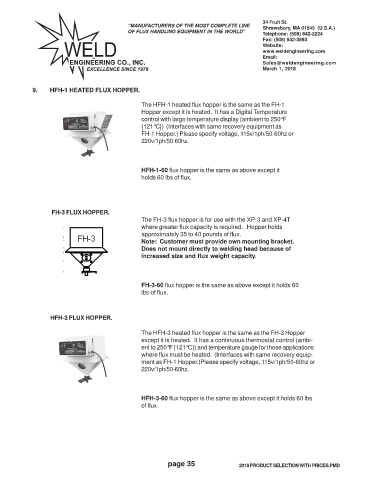

9. HFH-1 HEATED FLUX HOPPER.

The HFH-1 heated flux hopper is the same as the FH-1
Hopper except it is heated. It has a Digital Temperature
control with large temperature display (ambient to 250°F
{121°C}) (Interfaces with same recovery equipment as
FH-1 Hopper.) Please specify voltage, 115v/1ph/50-60hz or
220v/1ph/50-60hz.

HFH-1-60 flux hopper is the same as above except it
holds 60 lbs of flux.

FH-3 FLUX HOPPER.
The FH-3 flux hopper is for use with the XP-3 and XP-4T
where greater flux capacity is required. Hopper holds
approximately 35 to 40 pounds of flux.
Note: Customer must provide own mounting bracket.
Does not mount directly to welding head because of
increased size and flux weight capacity.

FH-3-60 flux hopper is the same as above except it holds 60
lbs of flux.

HFH-3 FLUX HOPPER.

The HFH-3 heated flux hopper is the same as the FH-3 Hopper
except it is heated. It has a continuous thermostat control (ambi-
ent to 250°F {121°C}) and temperature gauge for those applications
where flux must be heated. (Interfaces with same recovery equip-
ment as FH-1 Hopper.)Please specify voltage, 115v/1ph/50-60hz or
220v/1ph/50-60hz.

HFH-3-60 flux hopper is the same as above except it holds 60 lbs
of flux.
