Page 38 - Weld Engineering Product Selection Pages
P. 38
34 Fruit St.
“MANUFACTURERS OF THE MOST COMPLETE LINE Shrewsbury, MA 01545 (U.S.A.)
OF FLUX HANDLING EQUIPMENT IN THE WORLD”
Telephone: (508) 842-2224
Fax: (508) 842-3893
Website:
www.weldengineering.com
Email:
[email protected]
March 1, 2018

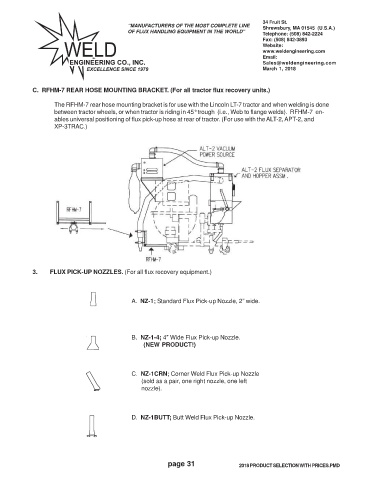

C. RFHM-7 REAR HOSE MOUNTING BRACKET. (For all tractor flux recovery units.)
The RFHM-7 rear hose mounting bracket is for use with the Lincoln LT-7 tractor and when welding is done
between tractor wheels, or when tractor is riding in 45° trough (i.e., Web to flange welds). RFHM-7 en-
ables universal positioning of flux pick-up hose at rear of tractor. (For use with the ALT-2, APT-2, and
XP-3TRAC.)
3. FLUX PICK-UP NOZZLES. (For all flux recovery equipment.)
A. NZ-1; Standard Flux Pick-up Nozzle, 2” wide.
B. NZ-1-4; 4" Wide Flux Pick-up Nozzle.
(NEW PRODUCT!)
C. NZ-1CRN; Corner Weld Flux Pick-up Nozzle
(sold as a pair, one right nozzle, one left
nozzle).
D. NZ-1BUTT; Butt Weld Flux Pick-up Nozzle.
page 31 2018 PRODUCT SELECTION WITH PRICES.PMD
