2. STATIONARY SUBMERGED ARC FLUX OVENS

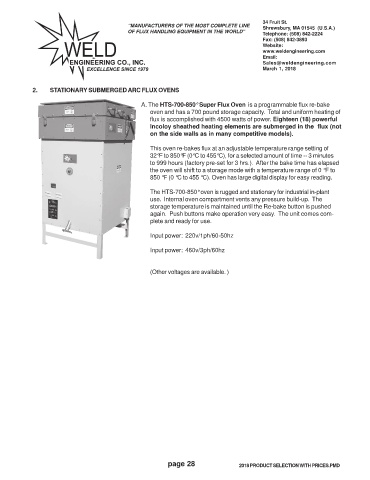

A. The HTS-700-850° Super Flux Oven is a programmable flux re-bake
oven and has a 700 pound storage capacity. Total and uniform heating of
flux is accomplished with 4500 watts of power. Eighteen (18) powerful
Incoloy sheathed heating elements are submerged in the flux (not
on the side walls as in many competitive models).

This oven re-bakes flux at an adjustable temperature range setting of
32°F to 850°F (0°C to 455°C), for a selected amount of time -- 3 minutes
to 999 hours (factory pre-set for 3 hrs.). After the bake time has elapsed
the oven will shift to a storage mode with a temperature range of 0 °F to
850 °F (0 °C to 455 °C). Oven has large digital display for easy reading.

The HTS-700-850° oven is rugged and stationary for industrial in-plant
use. Internal oven compartment vents any pressure build-up. The
storage temperature is maintained until the Re-bake button is pushed
again. Push buttons make operation very easy. The unit comes com-
plete and ready for use.

Input power: 220v/1ph/60-50hz

Input power: 460v/3ph/60hz

(Other voltages are available. )
