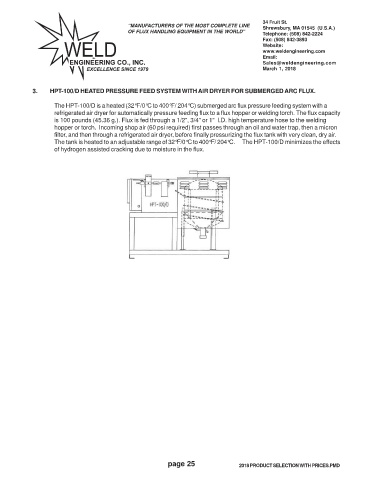

3. HPT-100/D HEATED PRESSURE FEED SYSTEM WITH AIR DRYER FOR SUBMERGED ARC FLUX.
The HPT-100/D is a heated (32°F/0°C to 400°F/ 204°C) submerged arc flux pressure feeding system with a
refrigerated air dryer for automatically pressure feeding flux to a flux hopper or welding torch. The flux capacity
is 100 pounds (45.36 g.). Flux is fed through a 1/2", 3/4" or 1" I.D. high temperature hose to the welding
hopper or torch. Incoming shop air (60 psi required) first passes through an oil and water trap, then a micron
filter, and then through a refrigerated air dryer, before finally pressurizing the flux tank with very clean, dry air.
The tank is heated to an adjustable range of 32°F/0°C to 400°F/ 204°C. The HPT-100/D minimizes the effects
of hydrogen assisted cracking due to moisture in the flux.
