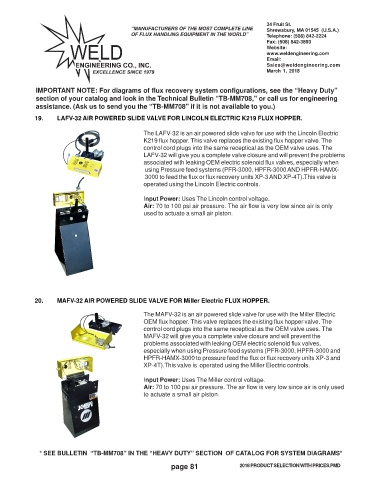

Page 88 - Weld Engineering Product Selection Pages

34 Fruit St.
“MANUFACTURERS OF THE MOST COMPLETE LINE Shrewsbury, MA 01545 (U.S.A.)
OF FLUX HANDLING EQUIPMENT IN THE WORLD” Telephone: (508) 842-2224
Fax: (508) 842-3893
Website:
www.weldengineering.com
Email:
[email protected]
March 1, 2018

IMPORTANT NOTE: For diagrams of flux recovery system configurations, see the “Heavy Duty”
section of your catalog and look in the Technical Bulletin “TB-MM708,” or call us for engineering
assistance. (Ask us to send you the “TB-MM708” if it is not available to you.)
19. LAFV-32 AIR POWERED SLIDE VALVE FOR LINCOLN ELECTRIC K219 FLUX HOPPER.

The LAFV-32 is an air powered slide valve for use with the Lincoln Electric
K219 flux hopper. This valve replaces the existing flux hopper valve. The
control cord plugs into the same receptical as the OEM valve uses. The
LAFV-32 will give you a complete valve closure and will prevent the problems
associated with leaking OEM electric solenoid flux valves, especially when
using Pressure feed systems (PFR-3000, HPFR-3000 AND HPFR-HAMX-
3000 to feed the flux or flux recovery units XP-3 AND XP-4T).This valve is
operated using the Lincoln Electric controls.
Input Power: Uses The Lincoln control voltage.
Air: 70 to 100 psi air pressure. The air flow is very low since air is only
used to actuate a small air piston.

20. MAFV-32 AIR POWERED SLIDE VALVE FOR Miller Electric FLUX HOPPER.
The MAFV-32 is an air powered slide valve for use with the Miller Electric
OEM flux hopper. This valve replaces the existing flux hopper valve. The
control cord plugs into the same receptical as the OEM valve uses. The
MAFV-32 will give you a complete valve closure and will prevent the
problems associated with leaking OEM electric solenoid flux valves,
especially when using Pressure feed systems (PFR-3000, HPFR-3000 and
HPFR-HAMX-3000 to pressure feed the flux or flux recovery units XP-3 and
XP-4T).This valve is operated using the Miller Electric controls.

Input Power: Uses The Miller control voltage.
Air: 70 to 100 psi air pressure. The air flow is very low since air is only used
to actuate a small air piston.

* SEE BULLETIN “TB-MM708” IN THE “HEAVY DUTY” SECTION OF CATALOG FOR SYSTEM DIAGRAMS*
