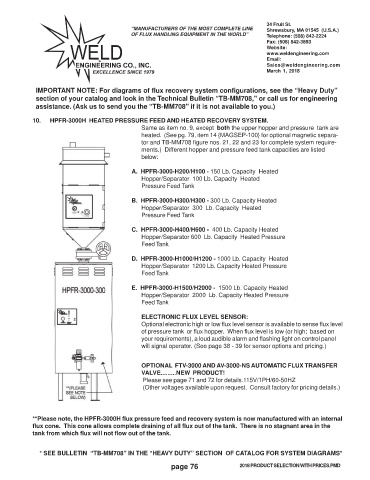

IMPORTANT NOTE: For diagrams of flux recovery system configurations, see the “Heavy Duty”
section of your catalog and look in the Technical Bulletin “TB-MM708,” or call us for engineering
assistance. (Ask us to send you the “TB-MM708” if it is not available to you.)
10. HPFR-3000H HEATED PRESSURE FEED AND HEATED RECOVERY SYSTEM.
Same as item no. 9, except both the upper hopper and pressure tank are
heated. (See pg. 79, item 14 {MAGSEP-100} for optional magnetic separa-
tor and TB-MM708 figure nos. 21, 22 and 23 for complete system require-
ments.) Different hopper and pressure feed tank capacities are listed
below:

A. HPFR-3000-H200/H100 - 150 Lb. Capacity Heated
Hopper/Separator 100 Lb. Capacity Heated
Pressure Feed Tank

B. HPFR-3000-H300/H300 - 300 Lb. Capacity Heated
Hopper/Separator 300 Lb. Capacity Heated
Pressure Feed Tank

C. HPFR-3000-H400/H600 - 400 Lb. Capacity Heated
Hopper/Separator 600 Lb. Capacity Heated Pressure
Feed Tank

D. HPFR-3000-H1000/H1200 - 1000 Lb. Capacity Heated
Hopper/Separator 1200 Lb. Capacity Heated Pressure
Feed Tank

E. HPFR-3000-H1500/H2000 - 1500 Lb. Capacity Heated
Hopper/Separator 2000 Lb. Capacity Heated Pressure
Feed Tank

ELECTRONIC FLUX LEVEL SENSOR:
Optional electronic high or low flux level sensor is available to sense flux level
of pressure tank or flux hopper. When flux level is low (or high; based on
your requirements), a loud audible alarm and flashing light on control panel
will signal operator. (See page 38 - 39 for sensor options and pricing.)

OPTIONAL FTV-3000 AND AV-3000-NS AUTOMATIC FLUX TRANSFER
VALVE.........NEW PRODUCT!
Please see page 71 and 72 for details.115V/1PH/60-50HZ
(Other voltages available upon request. Consult factory for pricing details.)

**Please note, the HPFR-3000H flux pressure feed and recovery system is now manufactured with an internal
flux cone. This cone allows complete draining of all flux out of the tank. There is no stagnant area in the
tank from which flux will not flow out of the tank.

* SEE BULLETIN “TB-MM708” IN THE “HEAVY DUTY” SECTION OF CATALOG FOR SYSTEM DIAGRAMS*
