IMPORTANT NOTE: For diagrams of flux recovery system configurations, see the “Heavy Duty”
section of your catalog and look in the Technical Bulletin “TB-MM708,” or call us for engineering
assistance. (Ask us to send you the “TB-MM708” if it is not available to you.)

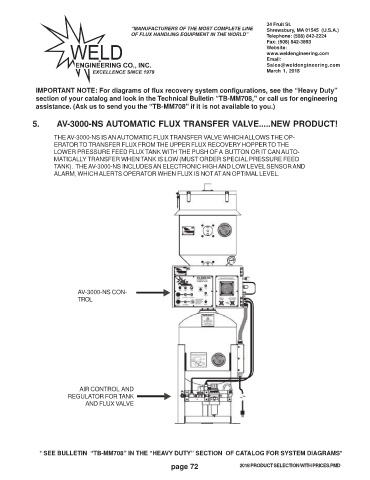

5. AV-3000-NS AUTOMATIC FLUX TRANSFER VALVE.....NEW PRODUCT!

THE AV-3000-NS IS AN AUTOMATIC FLUX TRANSFER VALVE WHICH ALLOWS THE OP-
ERATOR TO TRANSFER FLUX FROM THE UPPER FLUX RECOVERY HOPPER TO THE
LOWER PRESSURE FEED FLUX TANK WITH THE PUSH OF A BUTTON OR IT CAN AUTO-
MATICALLY TRANSFER WHEN TANK IS LOW (MUST ORDER SPECIAL PRESSURE FEED
TANK). THE AV-3000-NS INCLUDES AN ELECTRONIC HIGH AND LOW LEVEL SENSOR AND
ALARM, WHICH ALERTS OPERATOR WHEN FLUX IS NOT AT AN OPTIMAL LEVEL.

AV-3000-NS CON-
TROL

AIR CONTROL AND
REGULATOR FOR TANK
AND FLUX VALVE

* SEE BULLETIN “TB-MM708” IN THE “HEAVY DUTY” SECTION OF CATALOG FOR SYSTEM DIAGRAMS*
