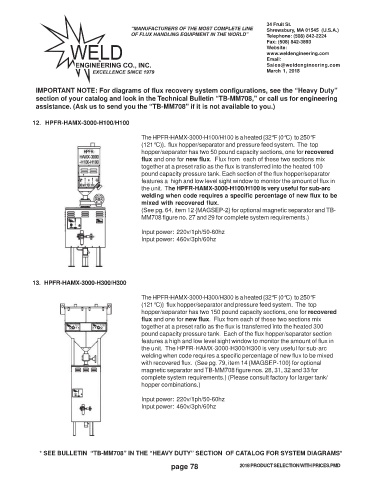

Page 85 - Weld Engineering Product Selection Pages

34 Fruit St.
“MANUFACTURERS OF THE MOST COMPLETE LINE Shrewsbury, MA 01545 (U.S.A.)
OF FLUX HANDLING EQUIPMENT IN THE WORLD” Telephone: (508) 842-2224
Fax: (508) 842-3893
Website:
www.weldengineering.com
Email:
[email protected]
March 1, 2018

IMPORTANT NOTE: For diagrams of flux recovery system configurations, see the “Heavy Duty”
section of your catalog and look in the Technical Bulletin “TB-MM708,” or call us for engineering
assistance. (Ask us to send you the “TB-MM708” if it is not available to you.)

12. HPFR-HAMX-3000-H100/H100

The HPFR-HAMX-3000-H100/H100 is a heated {32°F (0°C) to 250°F
(121°C)}. flux hopper/separator and pressure feed system. The top
hopper/separator has two 50 pound capacity sections, one for recovered
flux and one for new flux. Flux from each of these two sections mix
together at a preset ratio as the flux is transferred into the heated 100
pound capacity pressure tank. Each section of the flux hopper/separator
features a high and low level sight window to monitor the amount of flux in
the unit. The HPFR-HAMX-3000-H100/H100 is very useful for sub-arc
welding when code requires a specific percentage of new flux to be
mixed with recovered flux.
(See pg. 64, item 12 {MAGSEP-2} for optional magnetic separator and TB-
MM708 figure no. 27 and 29 for complete system requirements.)

Input power: 220v/1ph/50-60hz
Input power: 460v/3ph/60hz

13. HPFR-HAMX-3000-H300/H300

The HPFR-HAMX-3000-H300/H300 is a heated {32°F (0°C) to 250°F
(121°C)} flux hopper/separator and pressure feed system. The top
hopper/separator has two 150 pound capacity sections, one for recovered
flux and one for new flux. Flux from each of these two sections mix
together at a preset ratio as the flux is transferred into the heated 300
pound capacity pressure tank. Each of the flux hopper/separator section
features a high and low level sight window to monitor the amount of flux in
the unit. The HPFR-HAMX-3000-H300/H300 is very useful for sub-arc
welding when code requires a specific percentage of new flux to be mixed
with recovered flux. (See pg. 79, item 14 {MAGSEP-100} for optional
magnetic separator and TB-MM708 figure nos. 28, 31, 32 and 33 for
complete system requirements.) (Please consult factory for larger tank/
hopper combinations.)

Input power: 220v/1ph/50-60hz
Input power: 460v/3ph/60hz

* SEE BULLETIN “TB-MM708” IN THE “HEAVY DUTY” SECTION OF CATALOG FOR SYSTEM DIAGRAMS*
