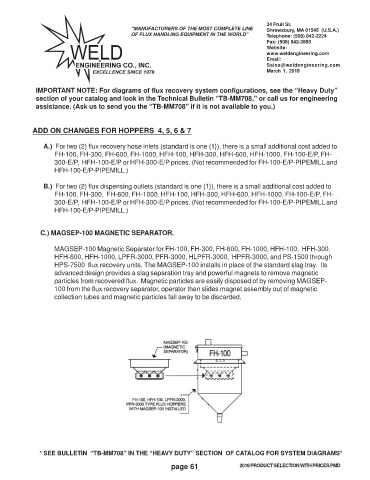

Page 68 - Weld Engineering Product Selection Pages

34 Fruit St.
“MANUFACTURERS OF THE MOST COMPLETE LINE Shrewsbury, MA 01545 (U.S.A.)
OF FLUX HANDLING EQUIPMENT IN THE WORLD” Telephone: (508) 842-2224
Fax: (508) 842-3893
Website:
www.weldengineering.com
Email:
[email protected]
March 1, 2018

IMPORTANT NOTE: For diagrams of flux recovery system configurations, see the “Heavy Duty”
section of your catalog and look in the Technical Bulletin “TB-MM708,” or call us for engineering
assistance. (Ask us to send you the “TB-MM708” if it is not available to you.)

ADD ON CHANGES FOR HOPPERS 4, 5, 6 & 7

A.) For two (2) flux recovery hose inlets (standard is one {1}), there is a small additional cost added to
FH-100, FH-300, FH-600, FH-1000, HFH-100, HFH-300, HFH-600, HFH-1000, FH-100-E/P, FH-
300-E/P, HFH-100-E/P or HFH-300-E/P prices. (Not recommended for FH-100-E/P-PIPEMILL and
HFH-100-E/P-PIPEMILL.)

B.) For two (2) flux dispensing outlets (standard is one {1}), there is a small additional cost added to
FH-100, FH-300, FH-600, FH-1000, HFH-100, HFH-300, HFH-600, HFH-1000, FH-100-E/P, FH-
300-E/P, HFH-100-E/P or HFH-300-E/P prices. (Not recommended for FH-100-E/P-PIPEMILL and
HFH-100-E/P-PIPEMILL.)

C.) MAGSEP-100 MAGNETIC SEPARATOR.

MAGSEP-100 Magnetic Separator for FH-100, FH-300, FH-600, FH-1000, HFH-100, HFH-300,
HFH-600, HFH-1000, LPFR-3000, PFR-3000, HLPFR-3000, HPFR-3000, and PS-1500 through
HPS-7500 flux recovery units. The MAGSEP-100 installs in place of the standard slag tray. Its
advanced design provides a slag separation tray and powerful magnets to remove magnetic
particles from recovered flux. Magnetic particles are easily disposed of by removing MAGSEP-
100 from the flux recovery separator, operator then slides magnet assembly out of magnetic
collection tubes and magnetic particles fall away to be discarded.

* SEE BULLETIN “TB-MM708” IN THE “HEAVY DUTY” SECTION OF CATALOG FOR SYSTEM DIAGRAMS*
