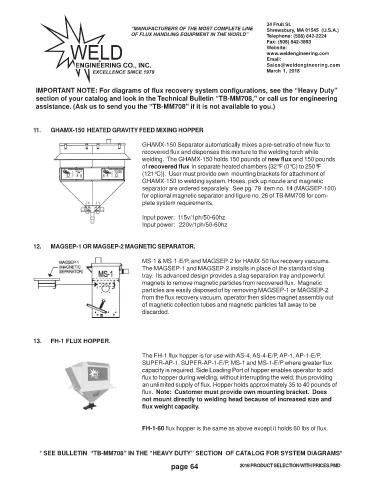

Page 71 - Weld Engineering Product Selection Pages

34 Fruit St.
“MANUFACTURERS OF THE MOST COMPLETE LINE Shrewsbury, MA 01545 (U.S.A.)
OF FLUX HANDLING EQUIPMENT IN THE WORLD” Telephone: (508) 842-2224
Fax: (508) 842-3893
Website:
www.weldengineering.com
Email:
[email protected]
March 1, 2018

IMPORTANT NOTE: For diagrams of flux recovery system configurations, see the “Heavy Duty”
section of your catalog and look in the Technical Bulletin “TB-MM708,” or call us for engineering
assistance. (Ask us to send you the “TB-MM708” if it is not available to you.)

11. GHAMX-150 HEATED GRAVITY FEED MIXING HOPPER

GHAMX-150 Separator automatically mixes a pre-set ratio of new flux to
recovered flux and dispenses this mixture to the welding torch while
welding. The GHAMX-150 holds 150 pounds of new flux and 150 pounds
of recovered flux in separate heated chambers {32°F (0°C) to 250°F
(121°C)}. User must provide own mounting brackets for attachment of
GHAMX-150 to welding system. Hoses, pick up nozzle and magnetic
separator are ordered separately. See pg. 79 item no. 14 (MAGSEP-100)
for optional magnetic separator and figure no. 26 of TB-MM708 for com-
plete system requirements.

Input power: 115v/1ph/50-60hz
Input power: 220v/1ph/50-60hz

12. MAGSEP-1 OR MAGSEP-2 MAGNETIC SEPARATOR.

MS-1 & MS-1-E/P, and MAGSEP-2 for HAMX-50 flux recovery vacuums.
The MAGSEP-1 and MAGSEP-2 installs in place of the standard slag
tray. Its advanced design provides a slag separation tray and powerful
magnets to remove magnetic particles from recovered flux. Magnetic
particles are easily disposed of by removing MAGSEP-1 or MAGSEP-2
from the flux recovery vacuum, operator then slides magnet assembly out
of magnetic collection tubes and magnetic particles fall away to be
discarded.

13. FH-1 FLUX HOPPER.

The FH-1 flux hopper is for use with AS-4, AS-4-E/P, AP-1, AP-1-E/P,
SUPER-AP-1, SUPER-AP-1-E/P, MS-1 and MS-1-E/P where greater flux
capacity is required. Side Loading Port of hopper enables operator to add
flux to hopper during welding, without interrupting the weld; thus providing
an unlimited supply of flux. Hopper holds approximately 35 to 40 pounds of
flux. Note: Customer must provide own mounting bracket. Does
not mount directly to welding head because of increased size and
flux weight capacity.

FH-1-60 flux hopper is the same as above except it holds 60 lbs of flux.

* SEE BULLETIN “TB-MM708” IN THE “HEAVY DUTY” SECTION OF CATALOG FOR SYSTEM DIAGRAMS*
