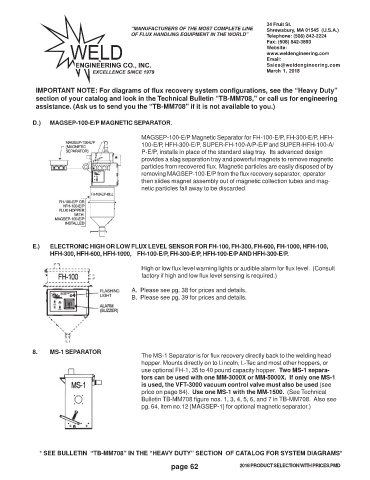

Page 69 - Weld Engineering Product Selection Pages

34 Fruit St.
“MANUFACTURERS OF THE MOST COMPLETE LINE Shrewsbury, MA 01545 (U.S.A.)
OF FLUX HANDLING EQUIPMENT IN THE WORLD” Telephone: (508) 842-2224
Fax: (508) 842-3893
Website:
www.weldengineering.com
Email:
[email protected]
March 1, 2018

IMPORTANT NOTE: For diagrams of flux recovery system configurations, see the “Heavy Duty”
section of your catalog and look in the Technical Bulletin “TB-MM708,” or call us for engineering
assistance. (Ask us to send you the “TB-MM708” if it is not available to you.)

D.) MAGSEP-100-E/P MAGNETIC SEPARATOR.

MAGSEP-100-E/P Magnetic Separator for FH-100-E/P, FH-300-E/P, HFH-
100-E/P, HFH-300-E/P, SUPER-FH-100-A/P-E/P and SUPER-HFH-100-A/
P-E/P, installs in place of the standard slag tray. Its advanced design
provides a slag separation tray and powerful magnets to remove magnetic
particles from recovered flux. Magnetic particles are easily disposed of by
removing MAGSEP-100-E/P from the flux recovery separator, operator
then slides magnet assembly out of magnetic collection tubes and mag-
netic particles fall away to be discarded.

E.) ELECTRONIC HIGH OR LOW FLUX LEVEL SENSOR FOR FH-100, FH-300, FH-600, FH-1000, HFH-100,
HFH-300, HFH-600, HFH-1000, FH-100-E/P, FH-300-E/P, HFH-100-E/P AND HFH-300-E/P.

High or low flux level warning lights or audible alarm for flux level. (Consult
factory if high and low flux level sensing is required.)

A. Please see pg. 38 for prices and details.
B. Please see pg. 39 for prices and details.

8. MS-1 SEPARATOR
The MS-1 Separator is for flux recovery directly back to the welding head
hopper. Mounts directly on to Lincoln, L-Tec and most other hoppers, or
use optional FH-1, 35 to 40 pound capacity hopper. Two MS-1 separa-
tors can be used with one MM-3000X or MM-5000X. If only one MS-1
is used, the VFT-3000 vacuum control valve must also be used (see
price on page 84). Use one MS-1 with the MM-1500. (See Technical
Bulletin TB-MM708 figure nos. 1, 3, 4, 5, 6, and 7 in TB-MM708. Also see
pg. 64, item no.12 {MAGSEP-1} for optional magnetic separator.)

* SEE BULLETIN “TB-MM708” IN THE “HEAVY DUTY” SECTION OF CATALOG FOR SYSTEM DIAGRAMS*

page 62 2018 PRODUCT SELECTION WITH PRICES.PMD
