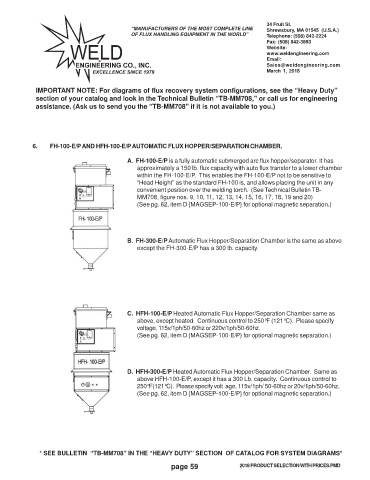

Page 66 - Weld Engineering Product Selection Pages

34 Fruit St.
“MANUFACTURERS OF THE MOST COMPLETE LINE Shrewsbury, MA 01545 (U.S.A.)
OF FLUX HANDLING EQUIPMENT IN THE WORLD” Telephone: (508) 842-2224
Fax: (508) 842-3893
Website:
www.weldengineering.com
Email:
[email protected]
March 1, 2018

IMPORTANT NOTE: For diagrams of flux recovery system configurations, see the “Heavy Duty”
section of your catalog and look in the Technical Bulletin “TB-MM708,” or call us for engineering
assistance. (Ask us to send you the “TB-MM708” if it is not available to you.)

6. FH-100-E/P AND HFH-100-E/P AUTOMATIC FLUX HOPPER/SEPARATION CHAMBER.

A. FH-100-E/P is a fully automatic submerged arc flux hopper/separator. It has
approximately a 150 lb. flux capacity with auto flux transfer to a lower chamber
within the FH-100-E/P. This enables the FH-100-E/P not to be sensitive to
“Head Height” as the standard FH-100 is, and allows placing the unit in any
convenient position over the welding torch. (See Technical Bulletin TB-
MM708, figure nos. 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19 and 20)
(See pg. 62, item D {MAGSEP-100-E/P} for optional magnetic separation.)

B. FH-300-E/P Automatic Flux Hopper/Separation Chamber is the same as above
except the FH-300-E/P has a 300 lb. capacity.

C. HFH-100-E/P Heated Automatic Flux Hopper/Separation Chamber same as
above, except heated. Continuous control to 250°F (121°C). Please specify
voltage, 115v/1ph/50-60hz or 220v/1ph/50-60hz.
(See pg. 62, item D {MAGSEP-100-E/P} for optional magnetic separation.)

D. HFH-300-E/P Heated Automatic Flux Hopper/Separation Chamber. Same as
above HFH-100-E/P, except it has a 300 Lb. capacity. Continuous control to
250°F(121°C). Please specify volt age, 115v/1ph/ 50-60hz or 20v/1ph/50-60hz.
(See pg. 62, item D {MAGSEP-100-E/P} for optional magnetic separation.)

* SEE BULLETIN “TB-MM708” IN THE “HEAVY DUTY” SECTION OF CATALOG FOR SYSTEM DIAGRAMS*
