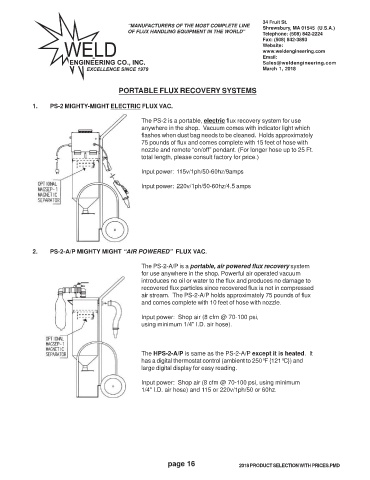

PORTABLE FLUX RECOVERY SYSTEMS

1. PS-2 MIGHTY-MIGHT ELECTRIC FLUX VAC.

The PS-2 is a portable, electric flux recovery system for use
anywhere in the shop. Vacuum comes with indicator light which
flashes when dust bag needs to be cleaned. Holds approximately
75 pounds of flux and comes complete with 15 feet of hose with
nozzle and remote “on/off” pendant. (For longer hose up to 25 Ft.
total length, please consult factory for price.)

Input power: 115v/1ph/50-60hz/9amps

Input power: 220v/1ph/50-60hz/4.5 amps

2. PS-2-A/P MIGHTY MIGHT “AIR POWERED” FLUX VAC.

The PS-2-A/P is a portable, air powered flux recovery system
for use anywhere in the shop. Powerful air operated vacuum
introduces no oil or water to the flux and produces no damage to
recovered flux particles since recovered flux is not in compressed
air stream. The PS-2-A/P holds approximately 75 pounds of flux
and comes complete with 10 feet of hose with nozzle.

Input power: Shop air (8 cfm @ 70-100 psi,
using minimum 1/4" I.D. air hose).

The HPS-2-A/P is same as the PS-2-A/P except it is heated. It
has a digital thermostat control (ambient to 250°F {121°C}) and
large digital display for easy reading.

Input power: Shop air (8 cfm @ 70-100 psi, using minimum
1/4" I.D. air hose) and 115 or 220v/1ph/50 or 60hz.
