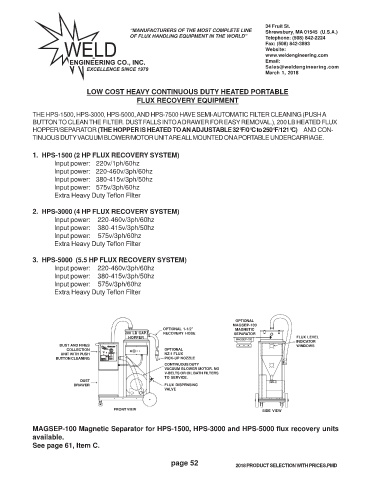

LOW COST HEAVY CONTINUOUS DUTY HEATED PORTABLE
FLUX RECOVERY EQUIPMENT

THE HPS-1500, HPS-3000, HPS-5000, AND HPS-7500 HAVE SEMI-AUTOMATIC FILTER CLEANING (PUSH A
BUTTON TO CLEAN THE FILTER. DUST FALLS INTO A DRAWER FOR EASY REMOVAL.), 200 LB HEATED FLUX
HOPPER/SEPARATOR (THE HOPPER IS HEATED TO AN ADJUSTABLE 32°F/0°C to 250°F/121°C) AND CON-
TINUOUS DUTY VACUUM BLOWER/MOTOR UNIT ARE ALL MOUNTED ON A PORTABLE UNDERCARRIAGE.

1. HPS-1500 (2 HP FLUX RECOVERY SYSTEM)
Input power: 220v/1ph/60hz
Input power: 220-460v/3ph/60hz
Input power: 380-415v/3ph/50hz
Input power: 575v/3ph/60hz
Extra Heavy Duty Teflon Filter

2. HPS-3000 (4 HP FLUX RECOVERY SYSTEM)
Input power: 220-460v/3ph/60hz
Input power: 380-415v/3ph/50hz
Input power: 575v/3ph/60hz
Extra Heavy Duty Teflon Filter

3. HPS-5000 (5.5 HP FLUX RECOVERY SYSTEM)
Input power: 220-460v/3ph/60hz
Input power: 380-415v/3ph/50hz
Input power: 575v/3ph/60hz
Extra Heavy Duty Teflon Filter

OPTIONAL
MAGSEP-100
OPTIONAL 1-1/2” MAGNETIC
200 LB CAP. RECOVERY HOSE SEPARATOR
HOPPER FLUX LEVEL
INDICATOR
DUST AND FINES WINDOWS
COLLECTION OPTIONAL
UNIT WITH PUSH NZ-1 FLUX
BUTTON CLEANING PICK-UP NOZZLE
CONTINUOUS DUTY
VACUUM BLOWER MOTOR. NO
V-BELTS OR OIL BATH FILTERS
TO SERVICE.
DUST
DRAWER FLUX DISPENSING
VALVE
FRONT VIEW SIDE VIEW

MAGSEP-100 Magnetic Separator for HPS-1500, HPS-3000 and HPS-5000 flux recovery units
available.
See page 61, Item C.
