            IMPORTANT NOTE: For diagrams of flux recovery system configurations, see the “Heavy Duty”
            section of your catalog and look in the Technical Bulletin “TB-MM708,” or call us for engineering
            assistance. (Ask us to send you the “TB-MM708” if it is not available to you.)

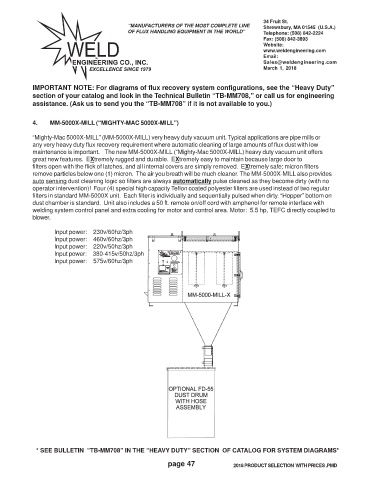

            4.    MM-5000X-MILL (“MIGHTY-MAC 5000X-MILL”)

            “Mighty-Mac 5000X-MILL” (MM-5000X-MILL) very heavy duty vacuum unit. Typical applications are pipe mills or
            any very heavy duty flux recovery requirement where automatic cleaning of large amounts of flux dust with low
            maintenance is important.    The new MM-5000X-MILL (“Mighty-Mac 5000X-MILL) heavy duty vacuum unit offers
            great new features.  EXtremely rugged and durable.  EXtremely easy to maintain because large door to
            filters open with the flick of latches, and all internal covers are simply removed.  EXtremely safe; micron filters
            remove particles below one (1) micron.  The air you breath will be much cleaner. The MM-5000X-MILL also provides
            auto sensing dust cleaning logic so filters are always automatically pulse cleaned as they become dirty (with no
            operator intervention)!  Four (4) special high capacity Teflon coated polyester filters are used instead of two regular
            filters in standard MM-5000X unit.  Each filter is individually and sequentially pulsed when dirty. “Hopper” bottom on
            dust chamber is standard.  Unit also includes a 50 ft. remote on/off cord with amphenol for remote interface with
            welding system control panel and extra cooling for motor and control area. Motor:  5.5 hp, TEFC directly coupled to
            blower.

                   Input power:     230v/60hz/3ph
                   Input power:     460v/60hz/3ph
                   Input power:     220v/50hz/3ph
                   Input power:     380-415v/50hz/3ph
                   Input power:     575v/60hz/3ph





































             * SEE BULLETIN  “TB-MM708” IN THE “HEAVY DUTY” SECTION  OF CATALOG FOR SYSTEM DIAGRAMS*
