IMPORTANT NOTE: For diagrams of flux recovery system configurations, see the “Heavy Duty”
section of your catalog and look in the Technical Bulletin “TB-MM708,” or call us for engineering
assistance. (Ask us to send you the “TB-MM708” if it is not available to you.)

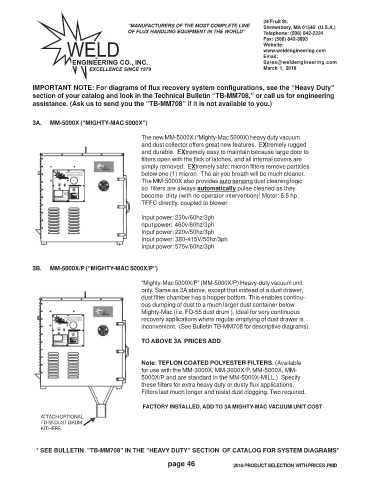

3A. MM-5000X (“MIGHTY-MAC 5000X”)

The new MM-5000X (“Mighty-Mac 5000X) heavy duty vacuum
and dust collector offers great new features. EXtremely rugged
and durable. EXtremely easy to maintain because large door to
filters open with the flick of latches, and all internal covers are
simply removed. EXtremely safe; micron filters remove particles
below one (1) micron. The air you breath will be much cleaner.
The MM-5000X also provides auto sensing dust cleaning logic
so filters are always automatically pulse cleaned as they
become dirty (with no operator intervention)! Motor: 5.5 hp,
TEFC directly coupled to blower.

Input power: 230v/60hz/3ph
nput power: 460v/60hz/3ph
Input power: 220v/50hz/3ph
Input power: 380-415V/50hz/3ph
Input power: 575v/60hz/3ph

3B. MM-5000X/P (“MIGHTY-MAC 5000X/P”)

“Mighty-Mac 5000X/P” (MM-5000X/P) Heavy-duty vacuum unit
only. Same as 3A above, except that instead of a dust drawer,
dust filter chamber has a hopper bottom. This enables continu-
ous dumping of dust to a much larger dust container below
Mighty-Mac (i.e. FD-55 dust drum ). Ideal for very continuous
recovery applications where regular emptying of dust drawer is
inconvenient. (See Bulletin TB-MM708 for descriptive diagrams).

TO ABOVE 3A PRICES ADD

Note: TEFLON COATED POLYESTER FILTERS. (Available
for use with the MM-3000X, MM-3000X/P, MM-5000X, MM-
5000X/P and are standard in the MM-5000X-MILL.) Specify
these filters for extra heavy duty or dusty flux applications.
Filters last much longer and resist dust clogging. Two required.

FACTORY INSTALLED, ADD TO 3A MIGHTY-MAC VACUUM UNIT COST
ATTACH OPTIONAL
FD-55 DUST DRUM
KIT HERE.

* SEE BULLETIN “TB-MM708” IN THE “HEAVY DUTY” SECTION OF CATALOG FOR SYSTEM DIAGRAMS*
